The brief

Task 11 — Frontend design: operations control room

Build a polished, responsive single-page operations dashboard called Relay using only local HTML, CSS, and JavaScript. No frameworks, package installs, external fonts, remote assets, or network requests.

Visual direction: calm, high-density control-room software for expert operators. Use a restrained neutral palette with one purposeful accent, excellent numeric alignment, compact spacing, and clear severity states. Avoid glassmorphism, decorative gradients, giant headings, and excessive rounded cards.

The page must include:

  • A navigation rail and top status bar.
  • Four summary metrics with trend context.
  • A 24-hour throughput visualization made with semantic HTML, CSS, canvas, or inline SVG.
  • A filterable incident table with severity, service, age, owner, and status.
  • A detail panel for the selected incident and a working acknowledge action.
  • Useful empty/filter states and visible keyboard focus.
  • A mobile layout that remains usable at 390 px without horizontal page scroll.

Seed realistic content from DATA.json. Create index.html, styles.css, and app.js. Add RESPONSE.md explaining the hierarchy, interaction behavior, and accessibility choices. Work only in this directory.

Inputs given: DATA.json

Scores

Criterion (max)Sonnet 5.5Grok 4.7Fable 5.1GPT-6 AstraGPT-6.1 SolOpus 5.5MiniMax M3.1 FlashmimomuseMiniMax M3GPT-6 Luna
visual hierarchy/taste (3)2.752.52.252.252.252.2521.7521.751.5
responsive design (2)1.751.751.751.751.7511.51.511.251.5
interaction and task completion (2)222221.751.751.751.751.51.5
accessibility (2)1.751.751.751.51.51.751.51.251.251.251
implementation quality (1)0.750.750.750.750.50.750.750.50.50.50.5
Total (10)98.758.58.2587.57.56.756.56.256
Grader's notes

Letters in the grader's text: A = mimo, B = Sonnet 5.5, C = GPT-6 Astra, D = Grok 4.7, E = MiniMax M3, F = GPT-6.1 Sol, G = muse, H = Fable 5.1, I = Opus 5.5, J = MiniMax M3.1 Flash, K = GPT-6 Luna.

I and J tie at 7.5: I ranked ahead for stronger accessibility and less fabrication despite its broken mobile list. C and F are close; C is more honest about units, and F's small text and invented copy cost it slightly. All objective checks were clean (no overflow at 390px, no remote requests); E logs a file:// fetch error before falling back.

Evaluation 9 / 10 graded blind as submission B

The most complete and best-judged submission: restrained light UI, a single blue accent, a bar chart with peak/low/mean and a chart/table toggle, severity chips, and a detail panel with acknowledge and undo. Mobile uses a bottom nav and a full-screen detail sheet.

Strengths

  • Clear hierarchy and good numeric alignment; trend deltas labelled Improving/Worsening
  • Acknowledge toggles to Undo, focus stays on the button, and the change is announced and reflected in the row and counts
  • Rich, useful empty state ('Nothing matches search … Clear filters'); 2px focus ring on every control, sortable headers, skip links

Weaknesses

  • Adds invented narrative (Impact, Suggested next step) and a 'vs 24 h ago' comparison window not in the data
  • Desktop leaves empty space below the table
Evidence the grader checked
  • Playwright: ack on INC-2839 -> focus on #d-ack 'Undo acknowledgement', status region '4 incidents, 3 unacknowledged', polite 'INC-2839 acknowledged by J. Rivera.'
  • Mobile 390: row tap opens a full-screen detail sheet with a close button; no horizontal overflow
  • Table text is 13px with ~17:1 contrast

Objective checks

  • Browser: horizontal scroll at 390 px no; console errors 0; network requests 0

Screenshots Open the live page

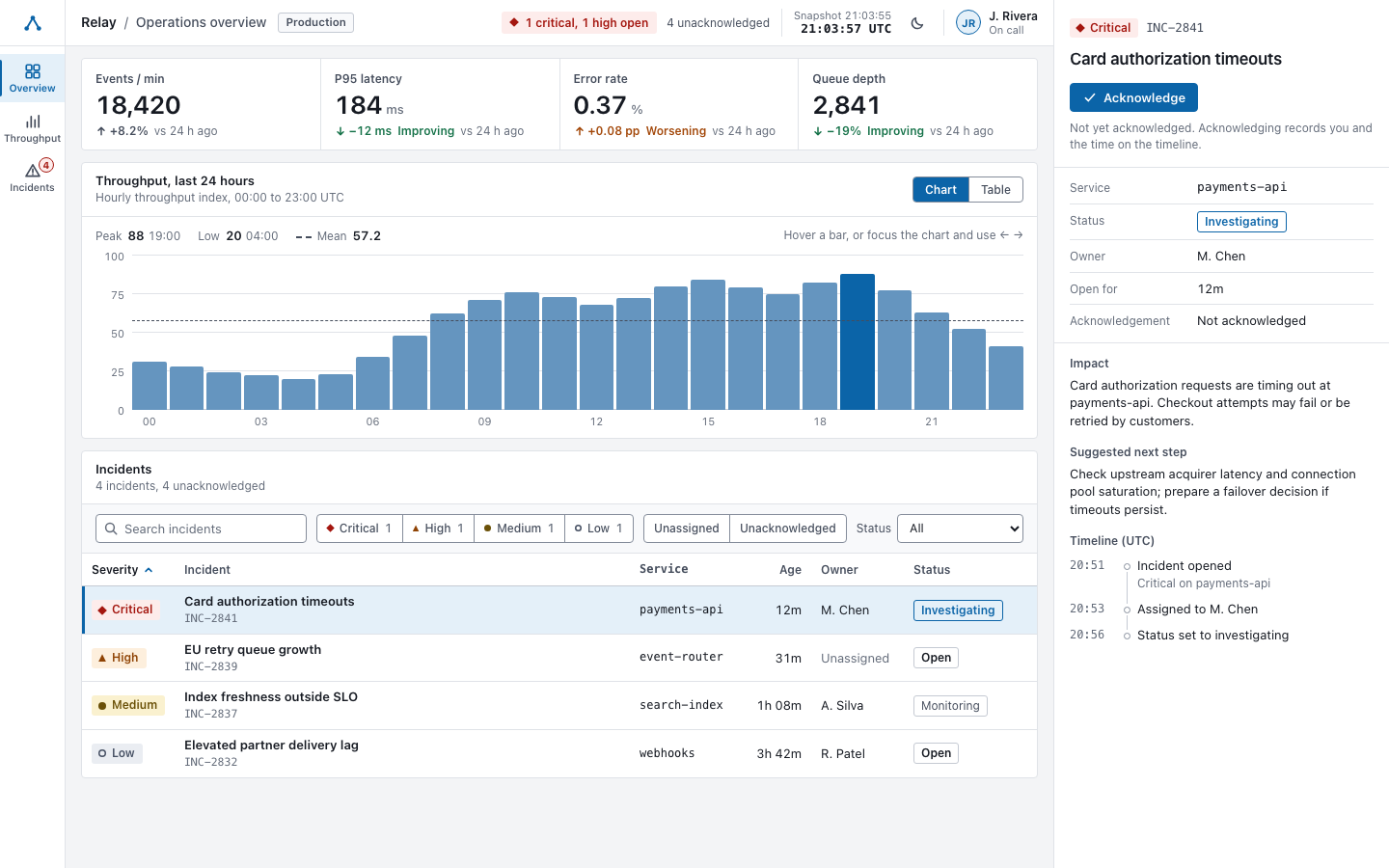

Sonnet 5.5, 1440 px view
1440 × 900 · click for full page

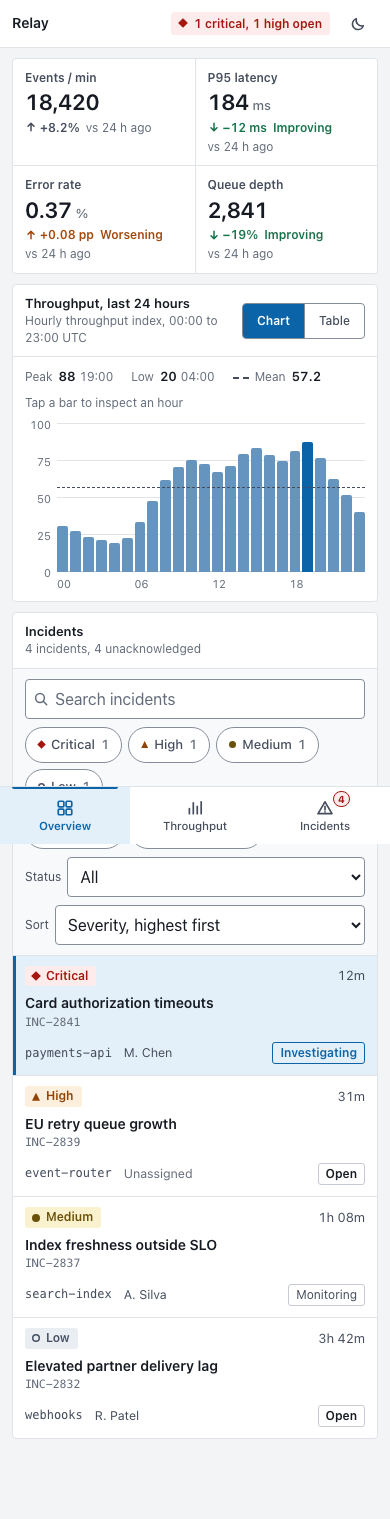

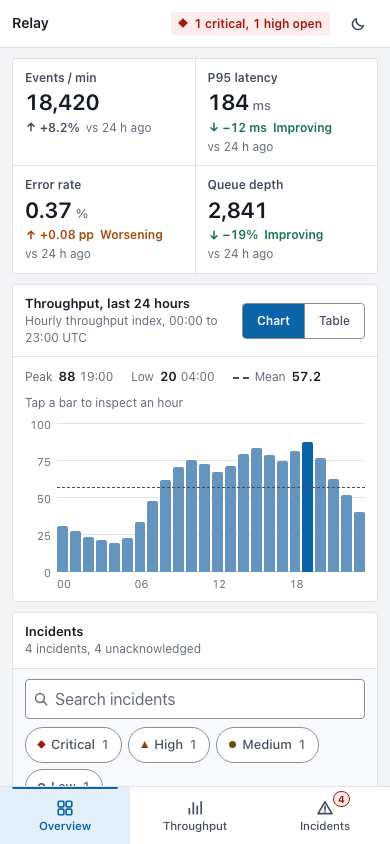

Sonnet 5.5, 390 px view
390 × 844 · click for full page

Files

sonnet-5.5/11-frontend-operations/RESPONSE.md

Relay: design response

Relay is a single-page operations dashboard built with plain HTML, CSS and JavaScript (index.html, styles.css, app.js). It uses system font stacks only and makes no network requests: no frameworks, remote assets, CDN links or fetch() calls. Open index.html directly in a browser.

Visual hierarchy

The page is organised by how an operator scans it: state of the system, then shape of the load, then what needs action, then the detail of one thing.

  1. Top status bar (answers "is anything on fire?"). The most saturated element on the page is the system pill (1 critical, 1 high open). It is derived from the incident data, not hard-coded. Next to it sit the environment chip, a live UTC clock and the operator. A narrow rail on the left holds navigation and an unacknowledged-incident badge.
  2. Four summary metrics. These sit in one bordered strip, divided by hairlines rather than separate cards. The value is the largest text on the page (26 px, tabular figures), with a muted label above and trend context below: arrow, delta, verdict and baseline (vs 24 h ago).
  3. 24 h throughput. This is a plain bar chart with a single accent. Peak and inspected bars use the accent, the rest a lower-emphasis tint of it. Grid lines are hairlines, and a dashed line marks the mean. Peak, low and mean are stated in text above the plot.
  4. Incident table. This is the working surface. Severity is the first column and the default sort. The title is bold with the ID in mono underneath, and the numeric age column is right-aligned with tabular figures.
  5. Detail inspector. It occupies the right-hand column, with the primary action directly under the title so it is never below the fold. Facts follow, then impact, next step and timeline.

Restraint choices:

  • One accent (blue) is used for selection, focus, the primary action and the chart data.
  • Neutrals do the structural work: borders instead of shadows, 4 px radii, and 12 to 13 px text.
  • Severity gets its own small semantic set (critical red, high orange, medium amber, low slate), kept muted and used only on badges and markers.
  • Metric trends follow polarity, not arrow direction. Events per minute going up is neutral. Latency, error rate and queue depth are lower-is-better, so "P95 latency down 12 ms" reads green and "error rate up 0.08 pp" reads orange. Colour is always paired with the words "Improving" or "Worsening".
  • There are no gradients, glass effects or display-size headings. The largest text is the metric figures (26 px), and the detail title is 17 px.

Interaction behaviour

  • Selection. Click anywhere on a row, or focus its button and press Enter or Space. The row gets an accent bar and tint, and the inspector updates. ArrowUp, ArrowDown, Home and End move focus between rows.

  • Filtering. The controls are:

    • free-text search over ID, title, service, owner, status and severity, where every word must match;
    • multi-select severity toggles with counts;
    • Unassigned and Unacknowledged triage toggles;
    • a status select.

    The panel subtitle reports n of 4 incidents match. A Clear filters link appears only while a filter is active. If the current selection is filtered out, selection moves to the first visible incident.

  • Sorting. Every column header is a sort button, with aria-sort on the header cell. The default is severity, highest first. Age sorts oldest first on the first click. On phones the same state is driven by a Sort select.

  • Empty states. No matches shows an empty panel that names the active filters, with a Clear filters button. Focus returns to the search field after clearing. If nothing is selected, the inspector shows its own empty message.

  • Acknowledge. The button records the operator (J. Rivera) and the UTC time. It then:

    • flips to Undo acknowledgement, and focus stays on the button;
    • adds a timeline event and an Ack tag in the table row;
    • updates the top-bar and rail-badge counts (4 to 3) and the Unacknowledged filter;
    • announces the change in a polite live region.

    Acknowledgement is deliberately separate from status, so an investigating incident stays investigating. If the Unacknowledged filter is on, the row that was just acknowledged stays visible until the filters next change, so it does not vanish from under the pointer.

  • Throughput chart. Hovering or tapping a bar shows the hour, value and change against the previous hour. The chart is one tab stop: focus it and use Left/Right/Home/End, with Esc to clear. There is a Chart / Table toggle for exact values.

  • Responsive behaviour.

    • At 1180 px and wider, the inspector is a permanent third column.
    • From 760 to 1179 px, the inspector becomes a right-hand drawer that opens on selection.
    • Below 760 px, the rail becomes a bottom tab bar, metrics form a 2 x 2 grid, table rows become stacked records, and the drawer is full screen.
    • There is no horizontal page scroll at 390 px or at 320 px.

  • Live details. The clock ticks every second, and incident ages advance from their seeded values every 20 seconds. Both are text-node updates, so focus and selection are never disturbed. The theme follows the system setting, with a manual toggle remembered in localStorage (wrapped in try/catch).

Accessibility choices

  • Landmarks and headings. The page has nav, header, main, labelled sections and aside, with one h1 and a sensible h2/h3 outline. Two skip links jump to main content and to incidents. Navigation links use aria-current="location" and follow the scroll position.
  • Focus. A 2 px accent outline with offset is shown via :focus-visible on every control. It is inset where clipping is possible (table cells, segmented controls). The chart plot and the table view are focusable, labelled regions.
  • Colour is never the only signal. Severity is text plus a distinct shape (diamond, triangle, disc, ring). Trends have an arrow, a signed number and a word. Acknowledgement has an icon and text, with a screen-reader label.
  • Contrast. The palette was checked with a script. Body and secondary text are at least 4.5:1 in both themes, severity text on its tint is at least 6:1, and the focus ring and control borders are at least 3:1. Dark mode is provided as well as light, and forced-colors has explicit fallbacks.
  • Table semantics. Real <table>, <th scope="col"> and aria-sort are used. Because CSS turns rows into stacked blocks on phones, which can strip table semantics in some browsers, the table elements carry explicit ARIA roles. Column headers stay in the accessibility tree on phones (visually hidden), and sorting moves to a native select.
  • Filters and toggles. Toggles are real buttons with aria-pressed, and groups are labelled. Every input has a label (the search label is visually hidden). Result counts and acknowledgement outcomes go to role="status" regions.
  • Drawer as modal dialog. In drawer mode the panel gets role="dialog" and aria-modal, and the rest of the page is inert. Tab is trapped inside, Esc, the close button and the scrim all close it, and focus returns to the row that opened it. Closed drawers use visibility: hidden, so they are not tabbable. Resizing back to desktop cleans this state up.
  • Touch and motion. Touch targets are at least 36 to 44 px on phones, and form fields are 16 px there to avoid iOS zoom. The only motion is a 180 ms drawer slide, disabled under prefers-reduced-motion. Layout wraps rather than clips, and at 200% browser zoom a laptop viewport falls into the phone layout.

Data, assumptions and verification

  • DATA.json is embedded verbatim in app.js, because a page opened from file:// cannot fetch() a sibling file. Metrics, the 24 throughput values and all four incidents are rendered from it.
  • DATA.json carries no trend baseline or throughput unit. I labelled trends vs 24 h ago, treated the 24 values as hourly buckets from 00:00 to 23:00 UTC, and called the y-axis a "throughput index".
  • The impact text, suggested next step and timeline times are illustrative supplements keyed by incident ID (NOTES in app.js). Timeline times are derived from the incident age.
  • I checked the page in headless Chromium at 1440, 1180, 1024, 768, 390 and 320 px, in both themes. That covered no console errors, no horizontal overflow, filter, sort and empty states, acknowledge and undo, keyboard navigation and focus return, and drawer open/close and trap. It also confirmed that no non-file: requests are made.
